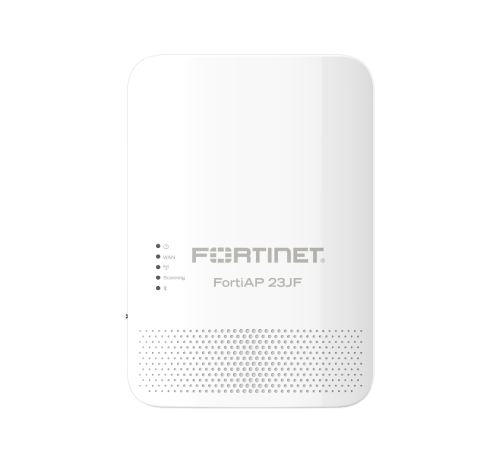

FortiAP-23JF |

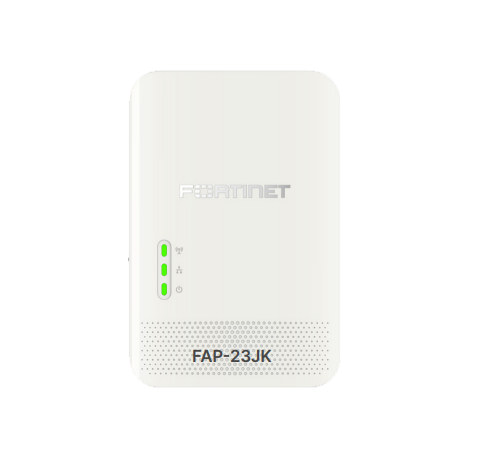

FortiAP-23JK |

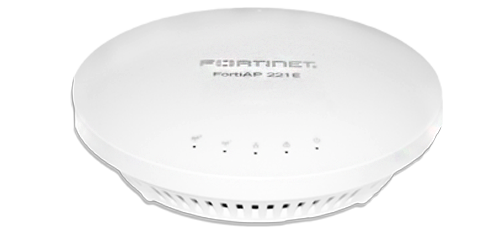

FortiAP-221E |

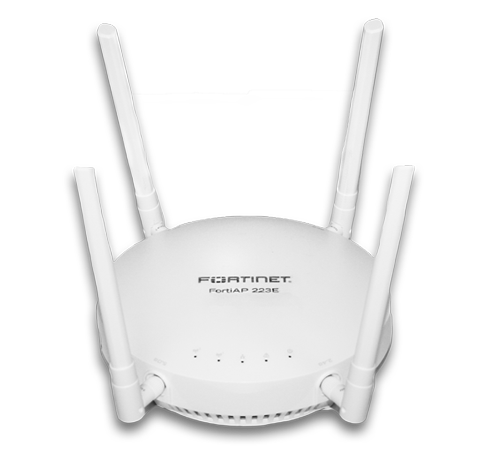

FortiAP-223E |
FortiAP-231K |
FortiAP-241K |

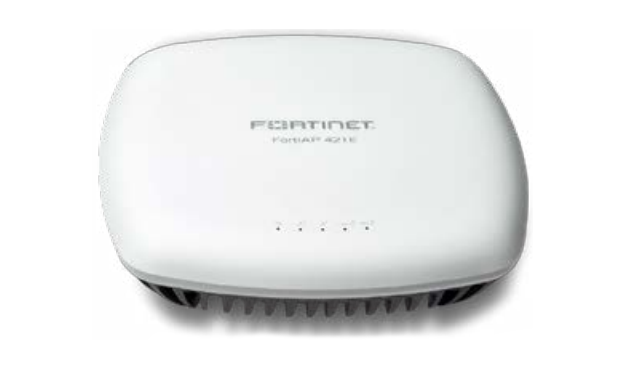

FortiAP-421E |

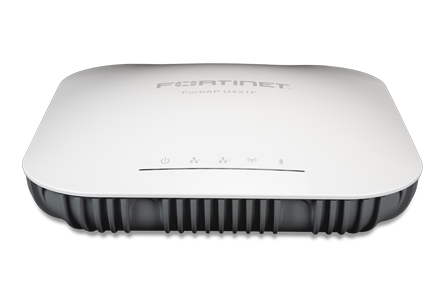

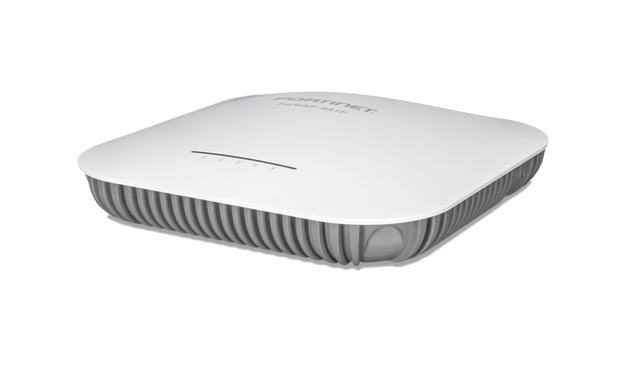

FortiAP-431F |
|
 |
 |
 |
 |
 |
 |
 |
 |
| Spécifications matérielles |
| Boîtier Int/Ext |
intérieur |
intérieur |
intérieur |
intérieur |
intérieur |
intérieur |
intérieur |
intérieur |
| Nombre de radio |
3 + 1 BLE |
3 + 1 BLE |
2 |
2 |
3 Wi-Fi + 1 BLE |
4 |
2 |
3 + 1 BLE |
| Norme WIFI IEEE |
WI-FI 6 |
WI-FI 7 |
WI-F I5 |
WI-FI 5 |
WI-FI 7 |
WI-FI 7 |
WI-FI 5 |
WI-FI 6 |
| Nombre d'antennes |
4 internes |
5 internes + 1 interne BLE |
4 internes |
4 externes |
4 internes |
4 internes |
8 internes |
5 internes + 1 interne BLE |
| Fréquence de la radio 1 |
2.4GHz b/g/n |
2.4GHz |
2.4 GHz b/g/n |
2.4GHz b/g/n |
2.4GHz b/g/n |
2.4GHz b/g/n |
2.4 GHz b/g/n (4x4:4 stream) |
2.4 GHz
(4x4 20/40 MHz) |
| Fréquence de la radio 2 |
5GHz a/n/ac |
5GHz |
5 GHz a/n/ac Wave 2 |
5GHz a/n/ac |
5GHz a/n/ac |
5GHz a/n/ac |
5 GHz a/n/ac (4x4:4 stream) |
5.0 GHz
(4x4 20/40/80MHz and 2x2 160MHz) |
| Fréquence de la radio 3 |
2.4 GHz b/g/n ou 5 GHz a/n |
6.0GHz |
- |
- |
6 GHz a/n |
6 GHz a/n |
- |
2.4/5.0 GHz |
| Ports Ethernet |
7x (10/100/1000) |
1x 100/1000/2.5G/5.0G/10G RJ45
3x 10/100/1000 RJ45 |
1x (10/100/1000) |
1x (10/100/1000) |
1x (100/1000/2.5G/5G) |
1x (100/1000/2.5G/5G/10G)
1 (10/100/1000) |
2x (10/100/1000) |
1x 100/1000/2500 RJ45
1 x 10/100/1000 RJ45 |
| Ports USB |
- |
- |
1 Type A |
1 Type A |
- |
1 Type 2.0 |
1 Type A |
1 Type A |
| Ports Console |
1x RS-232 x RJ45 |
1x RS-232 x RJ45 |
- |
- |
1x RS-232 x RJ45 |
1x RS-232 x RJ45 |
1x RS-232 x RJ45 |
1x RS-232 xRJ45 |
| SSIDs simultanés |
16 |
8 (7 if background scanning is enabled) |
16 |
16 |
8 (7 if background scanning is enabled) |
8 (7 if background scanning is enabled) |
16 (14 if background scanning enabled) |
16 (14 if background scanning enabled) |
| Nombre recommandé de clients par radios |
512 |
512 |
30 |
30 |
512 |
512 |
512 |
512 |
| Compatible POE |
oui |
oui |
oui |
oui |
oui |
oui |
oui
Dual redundant PoE ports IEEE 802.3at (25.5 W) |
oui
1 port powered by 802.3at or 2 ports powered by 802.3af |
| Alimentation POE |
option |
option |
option |
option |
option |
option |
option |
option |
| Bloc d'alimentation |
option |
option |
option |
option |
option |
option |
option |
option |
| Dimensions |
| Hauteur x Largeur x Longueur |
2.8 x 16,8 x 11,7 cm |
18 x 12 x 4 cm |
4,7 x 16 x 16 cm |
4,7 x 16 x 16 cm |
5.6 x 17.5 x 17.5 cm |
5.1 x 19 x 19 cm |
5.6 x 21.5 x 21.5 cm |
21 x 21 x 5,65 cm |
| Poids |
450g |
520g |
500g |
500g |
1010g |
1009g |
1 600g |
995g |
| Environnement |
| Humidité |
5 à 90% |
5 à 90% |
5 à 90% |
5 à 90% |
5 à 90% |
5 à 90% |
5 à 90% |
5 à 90% |
| Température de stockage |
-30 à 70°C |
-30 à 70°C |
-40 à 70°C |
-40 à 70°C |
-30 à 70°C |
-30 à 70°C |
-40 à 70°C |
-35 à 70°C |
| Température d'exploitation |
0 à 50°C |
0 à 45°C |
-20 à 50°C |
0 à 45°C |
0 à 50°C |
0 à 50°C |
-20 à 50°C |
0 à 45°C |
